CELEBES
74005
ELECTRIC 3 Motor TYPE
TECHNICAL INFO
Feature

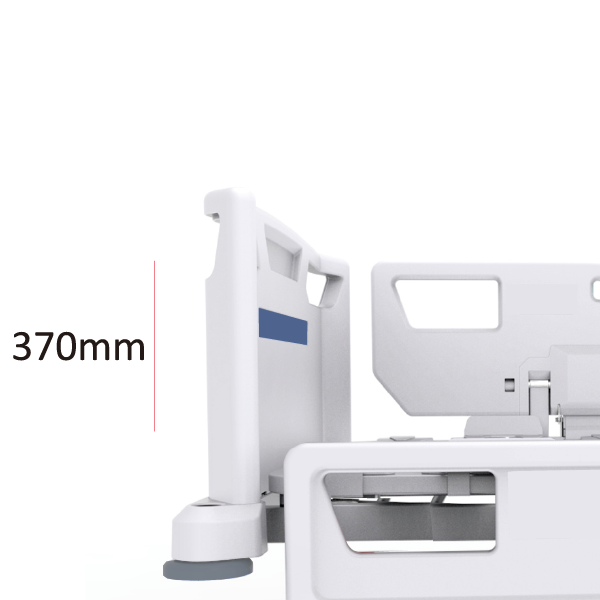

 | SAFETY SIDE GUARD The modern and full length side guard ensures patient safety. With its 370mm height from the mattress platform, the side guard will reduce the risk of falling. |

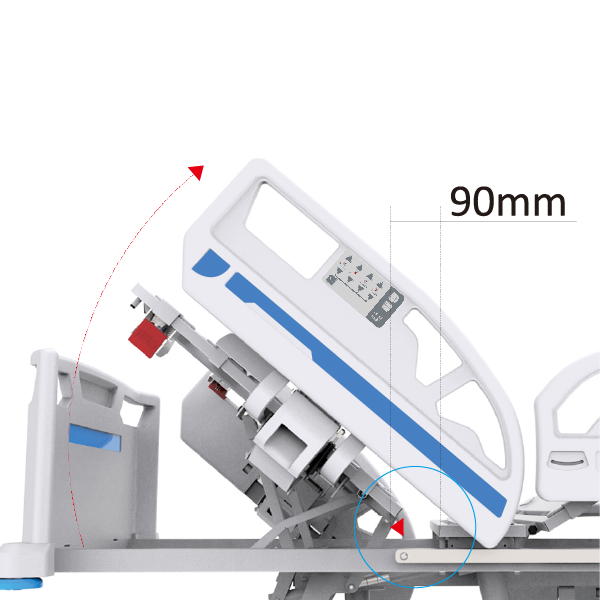

 | AUTO REGRESS The Auto Regress System reduce pressure in patient’s pelvic area when the back-raise is raised. |
 | SAFETY SIDE GUARD The modern and full length side guard ensures patient safety. With its 370mm height from the mattress platform, the side guard will reduce the risk of falling. |

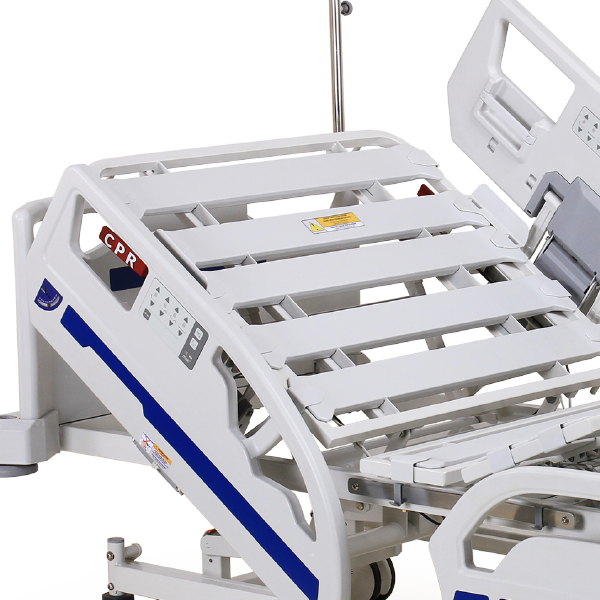

 | MATTRESS BASE Made from strong and light material, easy to remove and install for maintenance and cleaning. |
Specification
Construction
Combination of high quality steel section and sheet construction utilizing the latest manufacturing techniques throughout.
Head & Foot End Panel
Polypropylene panels (Blow molding process).
Side Guard
Split Side Guard made of Polypropylene

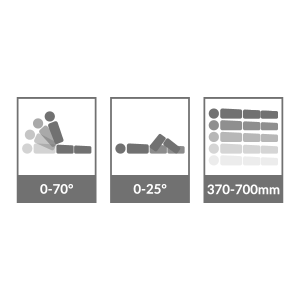

Positions
Back-raise inclination 0 - 70°.
Knee-raise inclination 0 - 25°.
Mattress platform elevation 370 (Lo) - 720 (Hi)mm.
Trendelenburg - anti Trendelenburg -13° - 13°.
CPR - Electric single touch button.
Auto Regression
Castor
5” double wheel castors with central lock.
I.V. Pole
Stainless steel sections - adjustable. Can be located in four different locations.
Accessories
Accessories Railing, Inclinometer.
Coating
Epoxy powder coating finish.
Max Patient Weight
185 Kg.
Net Weight
138 Kg.

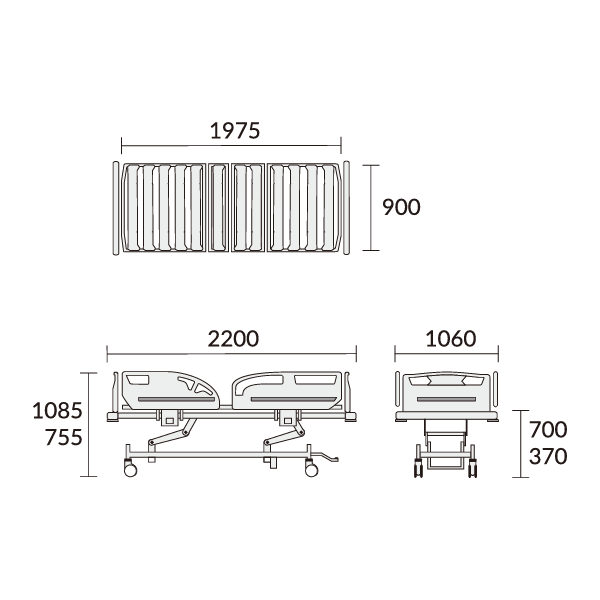

Dimension
(L) 2200 x (W) 1060 x (H) 765 - 1105 mm (Overall).
(L) 1975 x (W) 900 x (H) 370 - 720 mm (On mattress platform).
Dimension (mm)
